What Choose SDCAD Industrial Dust Collector
SDCAD provides you with non-standard customized solutions that are perfectly suited to a wide range of industrial dust control applications.
Built from carbon steel and stainless steel, it is capable of stable operation in harsh working environments.
The pulse-jet cleaning cycle is completed in 5 seconds, completely removing dust and fumes.
We offer more than ten types of high-quality filter bag materials. Selecting the right filter bag for your working conditions can significantly extend the service life of the dust collector.
Our dust collection system can handle varying dust loads, achieves a filtration efficiency of up to 99%, and can operate at the highest temperature of 200°C.
High Efficiency Dust Collection Equipment Essential for Industrial Use

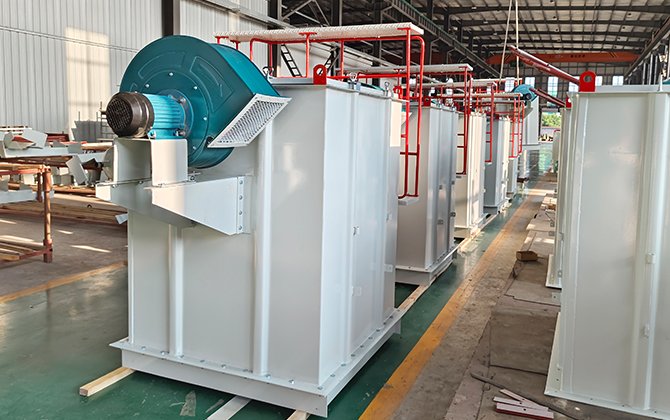

SDCAD is a professional manufacturer of industrial dust collectors. We have years of experience in the production of dust collectors, and have accumulated extensive expertise through numerous overseas export projects.
We have strong custom development capabilities. The ability to design a comprehensive dust removal solution tailored to your specific operating conditions, including material characteristics, airflow volume, dust generation points and facility dimensions. And equipped with a new generation of silent fans to achieve efficient noise control, helping you create a green and healthy production workshop.
Our industrial dust collectors are provided with detailed installation manuals and real-time video technical support for free. Please contact us for our one-stop dust collection equipment supply services.
Our Industrial Dust Collector
The SDCAD industrial dust collector can efficiently captures dust, fumes, and powders in workshops.

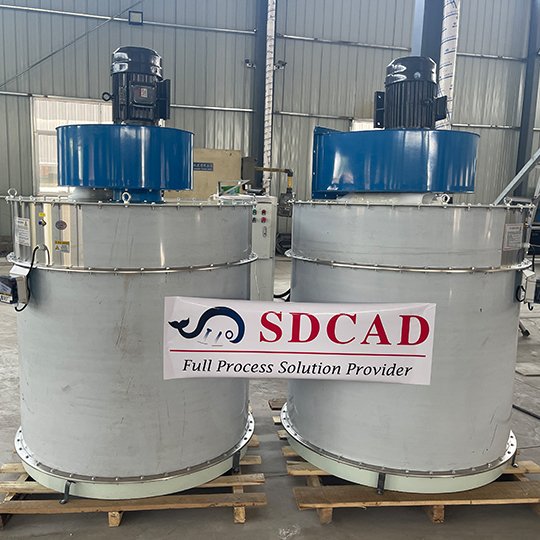

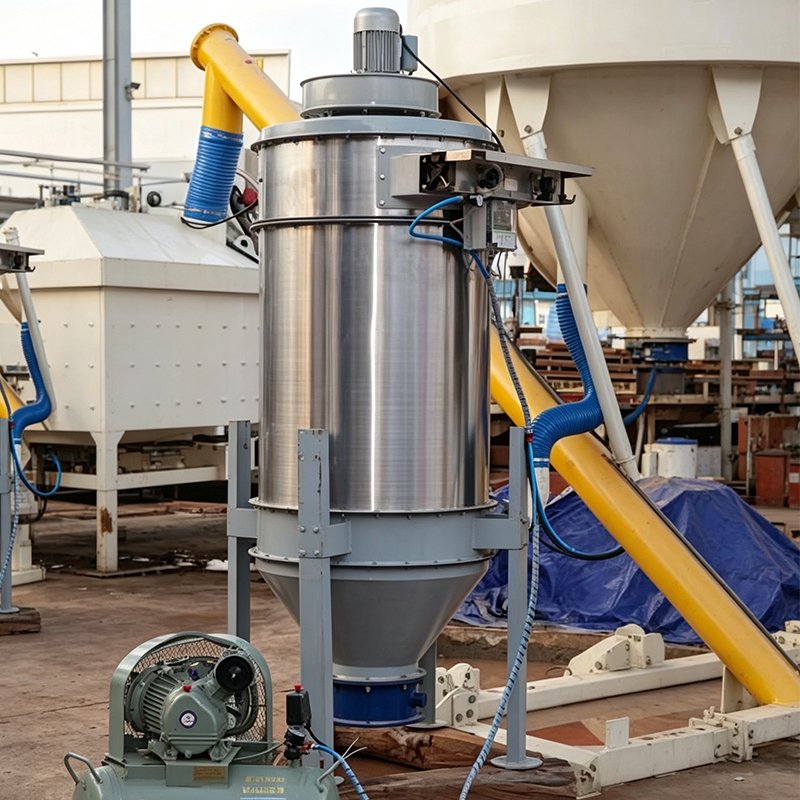

This pulse-jet dust collector is equipped with a stainless steel casing and a rain-proof fan cover.

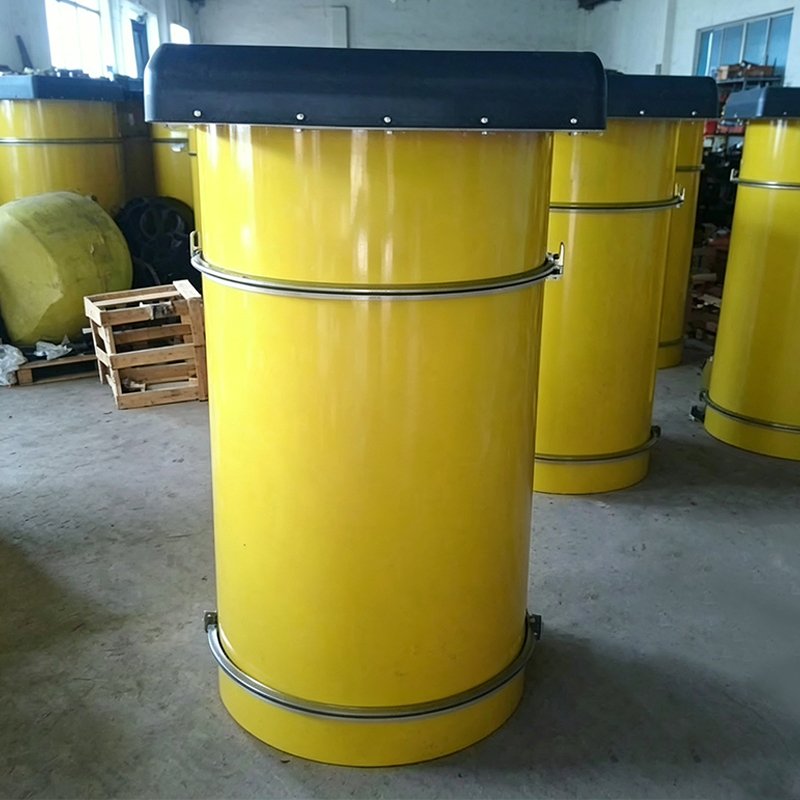

This stainless steel vibrating dust collector can operate normally in outdoor environments and handle air volume≥1,500 m³/h.

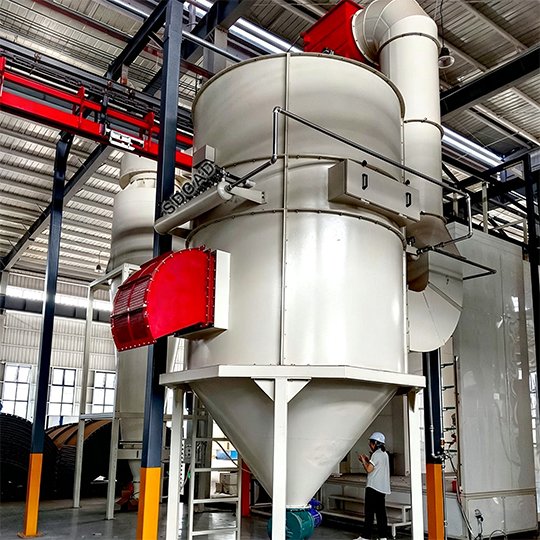

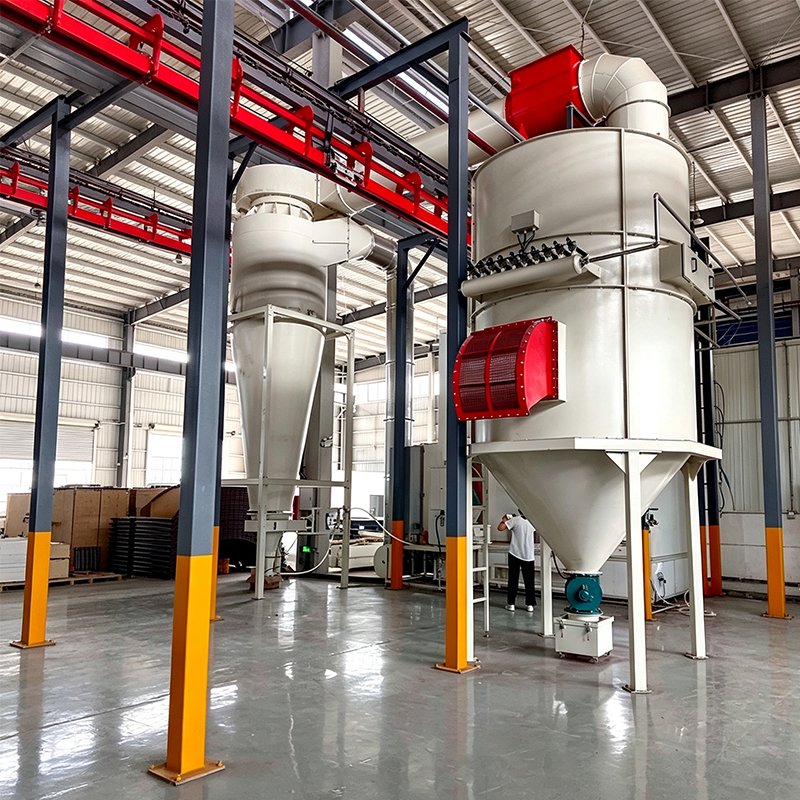

The cyclone dust collector comes in various models, allowing for the selection of the appropriate one to meet different requirements for air volume processing.

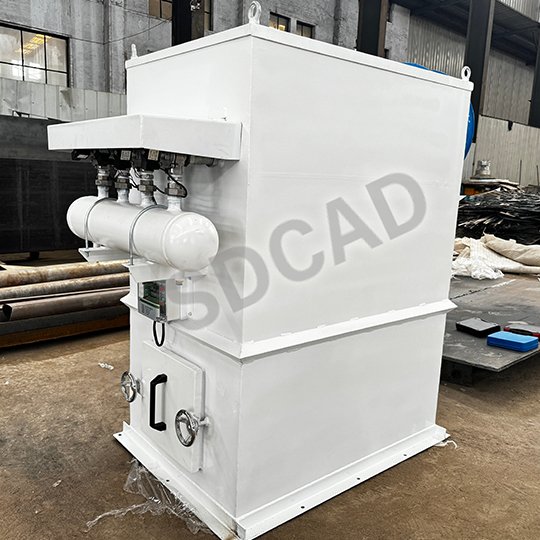

We offer custom-designed pulse-jet bag type dust collectors (models MC24–MC240), filtration efficiency exceeds 99%.
Why Choose SDCAD Industrial Dust Collector
We can according to your operating conditions, the types of dust and other factors, customized industrial dust removal solution for you.
Our system’s airflow range is from 1,200–23,040 m³/h and the filtered air speed is 1.0–2.0 m/min. It can meet the air volume requirements under various operating conditions.

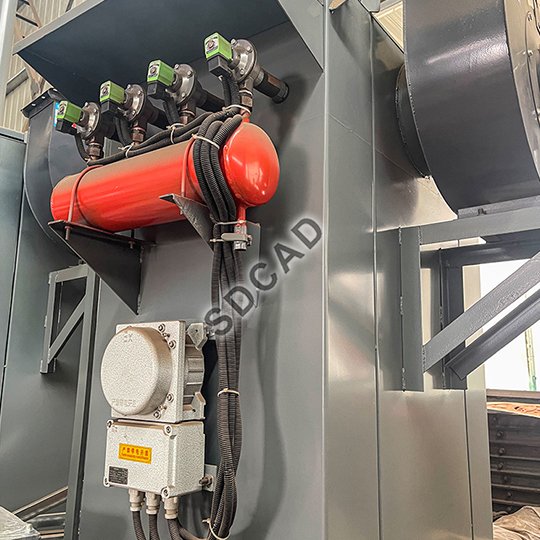

In 0.4–0.6 MPa pressure for 5seconds of fast pulse jet cleaning, with special solenoid pulse valve, can prevent dust from caking and clogging.
Equipped with elastic expansion rings to achieve sealing, these bags are wear-resistant and anti-aging, reducing the cost of consumables.
Outlet dust concentration ≤30 mg/m³, fully meeting the industrial waste gas emission standards. The purification performance will not decline during long-term continuous operation.
Provide a variety of quiet fans, power from 7.5kW to 22kW, suitable for fine or coarse dust production line, closed workshop and high concentration dust environment.
Suitable for use with a wide range of equipment, such as various cement silos and other industrial equipment that generates dust.
Maintenance platform with galvanized bolts. Fan is equipped with protective grille, cable is set has protective casing, to ensure the safety of equipment.

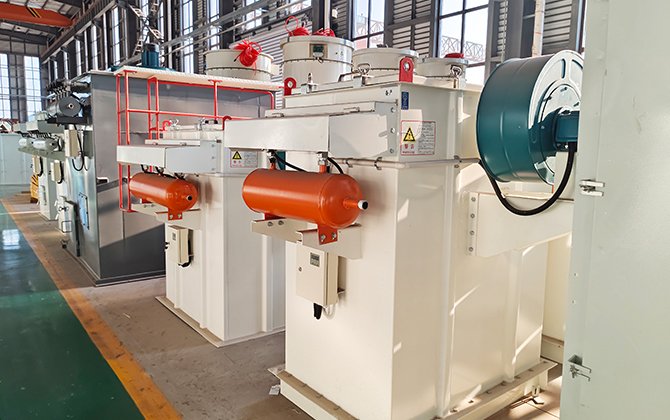

Efficient Pulse Cleaning System
SDCAD offers customizable carbon steel or stainless steel industrial dust collectors. The square and sturdy body is equipped with a pulse jet cleaning system, and the single cleaning cycle only takes 5 seconds.Our equipment uses compressed air pulses to flush the filter bags, efficiently capturing dust and fumes. The entire unit features a reinforced, wear resistant structure and offers a selection of more than ten types of high quality filter bags. We select the appropriate model based on the working conditions, dust temperature and humidity, and match the equipment to effectively reduce operation and maintenance costs.

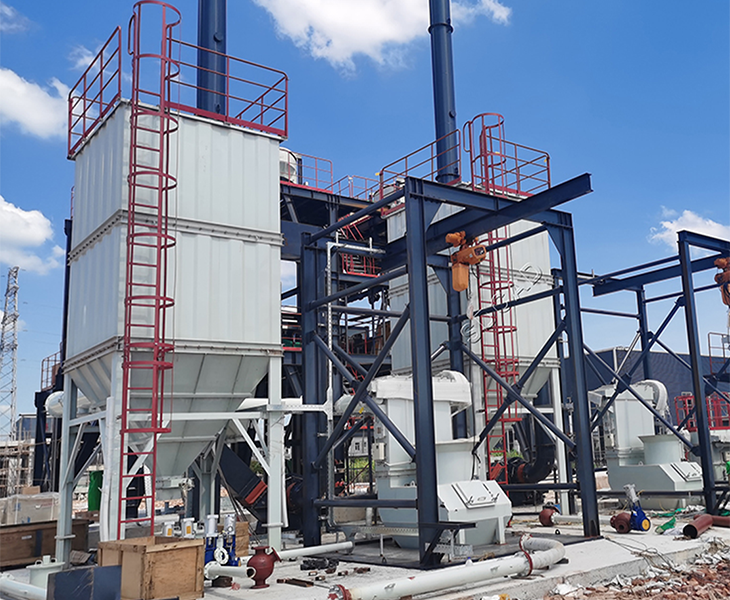

Wide Application
Our industrial dust collectors are suitable for fine powders such as flour and can handle various industrial dusts. The equipment can operate continuously at high temperatures up to 200°C, with a filtration efficiency of up to 99%. The air volume can be flexibly adjusted to provide stable dust removal performance.It can be adjusted and configured as needed, and is widely used in industries such as mechanical processing, building materials, chemical engineering and food processing. It meets environmental protection emission standards and ensures clean production.

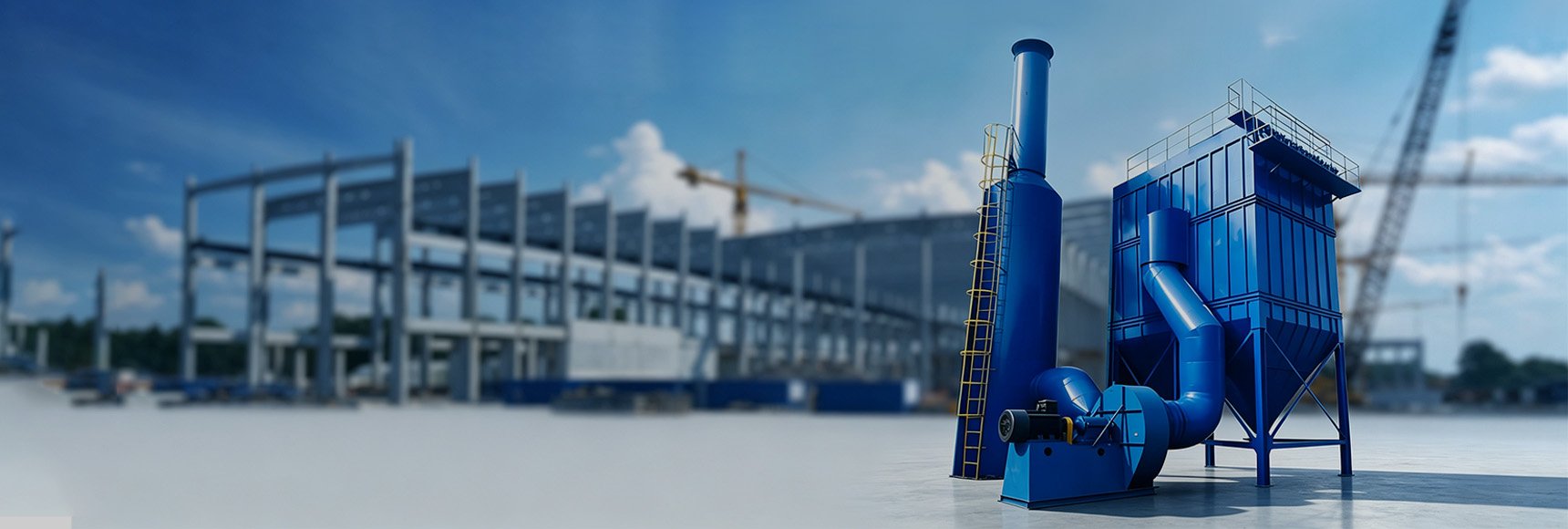

SDCAD | Your Industrial Dust Collector Partner

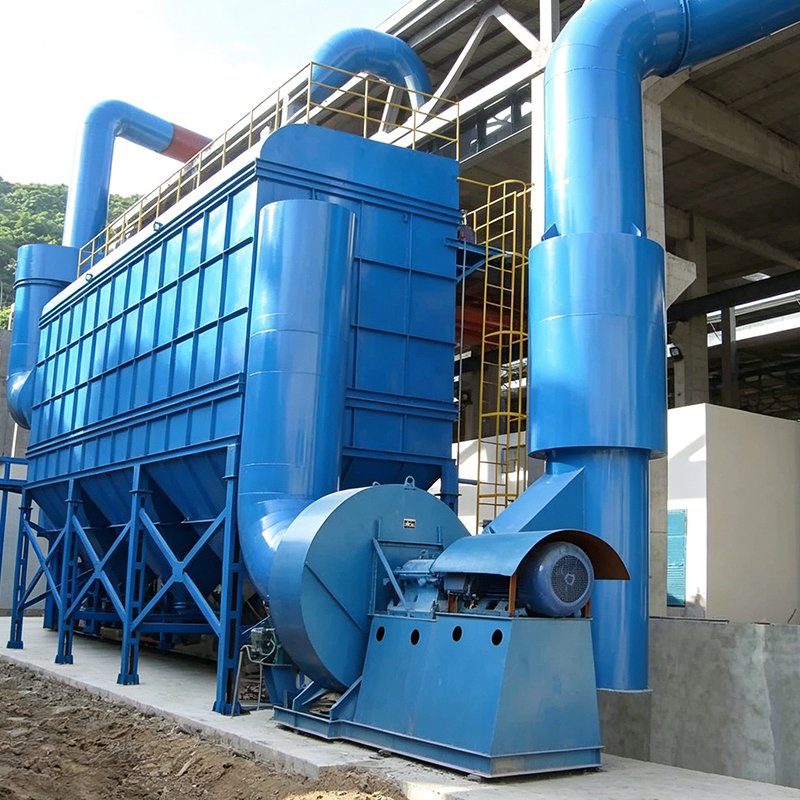

With years of design experience, we provide one-stop industrial dust collector solutions. Our designers tailor pulse jet baghouse dust collectors to meet your specific needs by considering key parameters such as dust concentration, temperature, humidity, dust abrasiveness, site space, and local environmental emission standards. We offer a comprehensive service chain that includes on-site operating condition assessments, process ductwork layout, airflow calculation, dust collector structural design, filter media selection, manufacturing of the complete unit, standardized packaging and ocean freight, on-site installation guidance, commissioning of the pulse-jet cleaning system, and hands-on training for operators. We help you avoid issues such as insufficient filtration efficiency, frequent filter bag damage, and high energy consumption associated with off-the-shelf models, ensuring the long-term, stable operation of your dust collection system.
Our Successful Case of the Dust Collector
In view of the high dust concentration of the Chilean copper mine, SDCAD customized a large pulse bag dust collector for the customer. The dust emissions met the local environmental protection standards, and the filter bag lifespan was significantly extended, achieving long-term stable operation.
The factory of Russian customers has limited installation space,and the dust collector needs to have low noise and stable operation.SDCAD redesigned the equipment based on the on-site layout, achieving efficient dust removal within the limited space, and increasing production efficiency.
- Silo-Top Dust Collector
- Large area dust removal
- Filter Bag Material
| Model | WGM-16 | WGM-24 | WGM-36 | WGM-48 | WGM-56 | WGM-64 |
| Filtration area m2 | 10 | 15 | 24 | 30 | 40 | 50 |
| filter qty( unit) | 16 | 24 | 36 | 48 | 56 | 64 |
| Height of filter m | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Array | 4*4 | 4*6 | 6*6 | 6*8 | 7*8 | 8*8 |
| Wind capacity m3/h | 1000-1500 | 1500-2500 | 2500-3500 | 3500-4500 | 4500-5500 | 5500-6500 |
| Fan power KW | 1.5 | 1.5 | 2.2 | 3 | 4 | 5.5 |
| 500t |
| Model | MC-24 | MC-32 | MC-36 | MC-48 | MC-64 | MC-80 | MC-96 | MC-100 | MC-120 | MC-160 | MC-200 | MC-240 |
| Area m2 | 20 | 25 | 30 | 40 | 50 | 64 | 77 | 80 | 96 | 128 | 160 | 192 |
| Wind speed | 1.0 – 2.0m/min | |||||||||||
| Wind capacitym3/h | 1200-2400 | 1500-3000 | 1800-3600 | 2400-4800 | 3000-6000 | 3840-7680 | 4620-9240 | 4800-9600 | 5760-11520 | 7680-15360 | 9600-19200 | 11520-23040 |
| Filter bag Qty. | 24 | 32 | 36 | 48 | 64 | 80 | 96 | 100 | 120 | 160 | 200 | 240 |
| Filter bag size | 130x2000mm | |||||||||||
| Outlet dust concentration | ≤30mg/m3 | |||||||||||
| Bearing Negative Pressure | 5000Pa | |||||||||||
| Working resistance | 800-1200Pa | |||||||||||
| Injection pressure | 0.4-0.6 Mpa | |||||||||||
| Qty. of Solenoid pulse valve | 4-72-2.8A | 4-72-3.2A | 4-72-3.6A | 4-72-3.6A | 4-72-4A | 4-72-4.5A | 4-72-4.5A | 4-72-4.5A | 4-72-5A | 4-72-5A | 4-68-8C | 4-68-6.3C |
| Fan power | 1.5 KW | 2.2 KW | 3 KW | 4 KW | 5.5 KW | 7.5 KW | 7.5 KW | 7.5 KW | 11 KW | 15 KW | 18.5 KW | 22 KW |
| Material | Feature | Post-processing method | |||
| 1)Polyester needle felt | FAW | 500g/m2 | Air permeability | 8-12m3/m2.min | Singeing Calender |
| Thick weight | 1.8mm | Work | 120℃ | ||
| Instantaneous | 150℃ | ||||
| 2)Polyester waterproof and oil-proof needle felt | FAW | 500g/m2 | Air permeability | 12m3/m2.min | Teflon coating Water and oil repellent treatment |
| Thick weight | 2.0mm | Work | 120℃ | ||
| Instantaneous | 150℃ | ||||
| 3)Polyester room temperature coated needle felt | FAW | 500g/m2 | Air permeability | 2.4m3/m2.min | Singeing Calender PTFE Microporous film coating |
| Thick weight | 2.0mm | Work | 120℃ | ||
| Instantaneous | 150℃ | ||||
| 4)Polyester anti-static needle felt | FAW | 500g/m2 | Air permeability | 13m3/m2.min | Teflon coating Singeing Calender |
| Thick weight | 1.8mm | Work | 120℃ | ||
| Instantaneous | 150℃ | ||||
| 5)Middle temperature high-strength needle felt | FAW | 500g/m2 | Air permeability | 20m3/m2.min | Teflon coating Singeing Calender |
| Thick weight | 2.0mm | Work | 150℃ | ||
| Instantaneous | 180℃ | ||||
| 6)Flumes high temperature composite needle felt | FAW | 800g/m2 | Air permeability | 15-30m3/m2.min | Singeing Calender |
| Thick weight | 3.0mm | Work | 90-280℃ | ||
| 7)Polyacrylonitrile Acrylic Needle Felt | FAW | 500g/m2 | Air permeability
| 18m3/m2.min | Teflon coating Singeing Calender |
| Thick weight | 2.0mm | Work | 150-160℃ | ||
| 8)Domestic Aramid Needle Felt Metas | FAW | 500g/m2 | Air permeability | 20m3/m2.min | Teflon coating Singeing Calender |
| Thick weight | 1.9mm | Work | 200℃ | ||
| 9)Nomex High temperature resistant needle felt | FAW | 500g/m2 | Air permeability | 8-12m3/m2.min | Singeing |
| Thick weight | 1.9mm | Work | 200℃ | ||
| 10)PPS Polyphenylene sulfide needle felt | FAW | 500g/m2 | Air permeability | 15m3/m2.min | High Temperature stability Singeing coating |
| Thick weight | 2.0mm | Work | 190℃ | ||
| 11)High temperature resistant needle felt | FAW | 950g/m2 | Air permeability | 18-32m3/m2.min | Teflon coating |
| Thick weight | 3.0mm | Work | 260-300℃ | ||
| 12)P84 Polyimide needle felt | FAW | 500g/m2 | Air permeability | 14m3/m2.min | Singeing |
| Thick weight | 2.1mm | Work | 260℃ | ||
| 13)No alkali Fiberglass needle felt | FAW | 950g/m2 | Air permeability | 20-35m3/m2.min | Teflon coating |
| Thick weight | 3.0mm | Work | 90-280℃ | ||
What Our Client Say
After we replacing with this MC type dust collector, now it only takes two to three days to complete one pulse-jet cleaning process, and there is no need to have personnel on duty every day, thus saving labor costs.
Donny SmithPlant Manager, AustraliaWe filter maintenance downtime has been a problem. After installing SDCAD’ s pulse-jet dust collector, the filter bags are cleaned automatically while the system is running. Our production line operates much more efficiently.
Mark ThompsonProduct Manager, CanadaOur mixing plant has limited space, so standard dust collectors didn’t fit. SDCAD customized the system for our site. It runs reliably and has significantly improved our production efficiency.
Abdulaziz RabiuPlant Manager, Nigeria
This dust collector is suitable for cement, stone, welding, woodworking, metallurgy and other industries, it can effectively handle dry powder, welding fumes and particulate matter. Both standard and explosion-proof models can be customized to meet specific requirements.
The ordinary membrane filter cartridges can be used for 8 to 12 months under normal working conditions and can be removed without tools. It takes only a few minutes for one person to complete the replacement, and both operation and maintenance are very simple.
Yes, this device is equipped with a silent fan and a sealed casing, and its operating noise is less than 75 decibels. If higher noise reduction is required, a silencer can be installed to accommodate the workshop environment.
You can select an appropriate dust collector based on airflow, dust characteristics, and the source of dust generation.
We offer a variety of compact models, supporting vertical and horizontal installation methods, suitable for wall-mounted or floor-standing installations. Small split-type equipment can be customized according to actual needs, helping to save factory space.
We support custom solutions for airflow and pressure. Engineers can calculate and select the appropriate models based on the factory conditions and dust concentration, so as to achieve a more stable dust removal effect.
