Why Choose SDCAD Belt Conveyors?
- Stationary belt conveyors can convey bulk materials and unit loads, offering a wide range of applications.
- Supports single or multiple conveyor combinations for horizontal or inclined conveying.
- Allows the selection of different conveyor belts according to material temperature and properties.
- Equipped with an intelligent control system, ensuring reliable operation and excellent control performance.
Your Professional Belt Conveyor Supplier
SDCAD Belt Conveyor adopts a modular design. It supports quick installation, flexible adjustment, and convenient maintenance. Fully assembled frame not only enables easy transportation and installation but also can be disassembled, assembled and reused, it is suitable for various environments. SDCAD provides customized solutions according to your on-site layout, conveying distance, material properties and operating condition requirements. Whether it is horizontal conveying or inclined conveying, SDCAD can help you solve the problem of complex terrain and material transport. From system design and equipment manufacturing to installation guidance and after-sales support, SDCAD provides comprehensive belt conveyor solutions. Our solutions are designed to improve material handling efficiency, reduce operating costs, and ensure long-term stable operation. Contact us for a customized belt conveyor solution.
SDCAD Belt Conveyor System Types

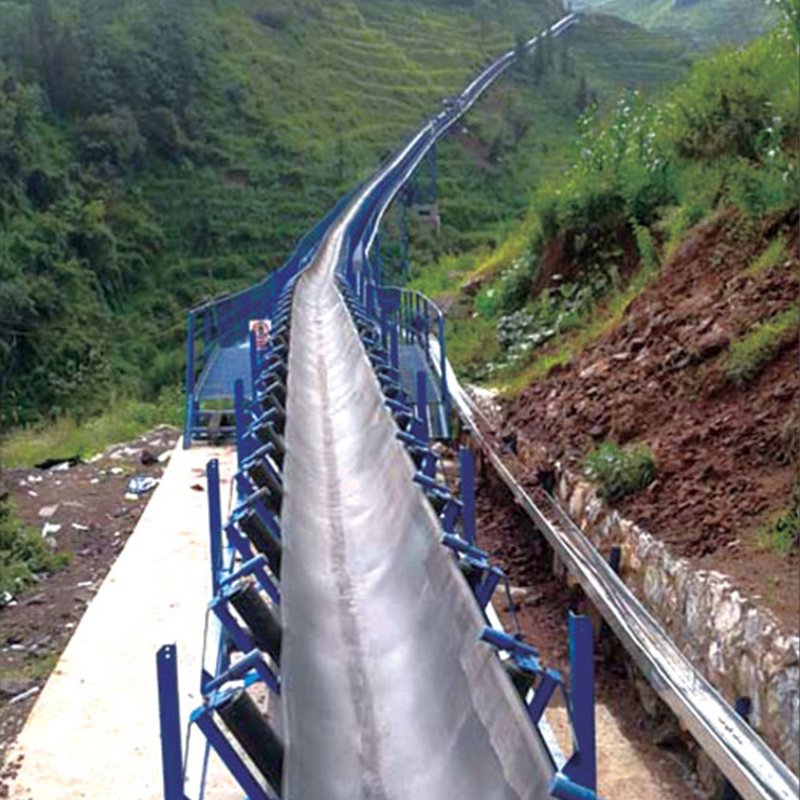

Long-distance curved belt conveyor fully adopts planar turns and spatial turns which can adapt various complex mountainous and riverine terrain to complete cross-country transport.

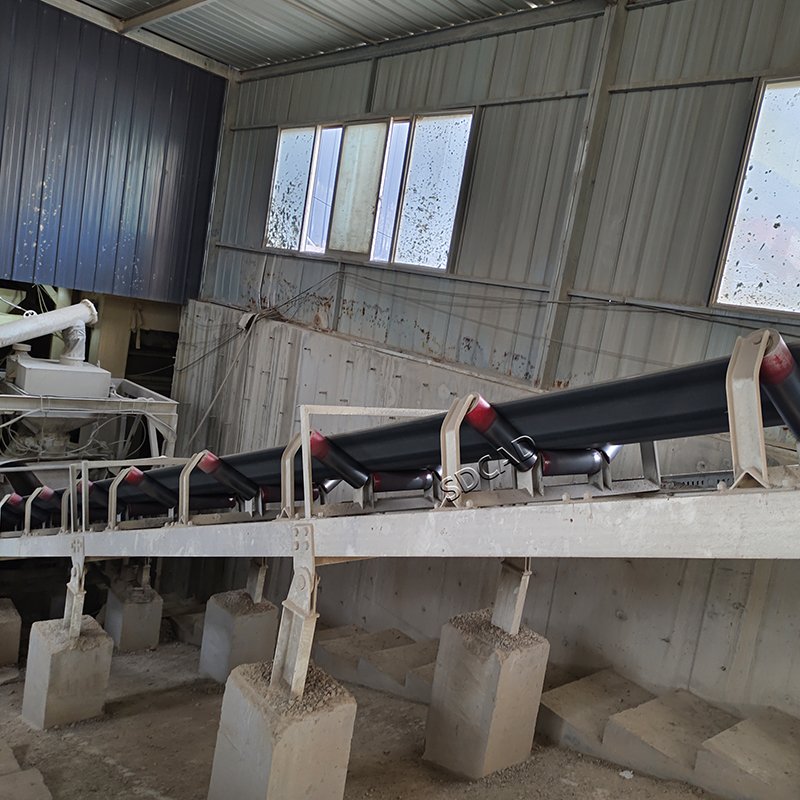

The conveyor belt of the pipe belt conveyor is enclosed by six PSK idler sets arranged in a regular hexagonal pattern, forming a tubular shape.

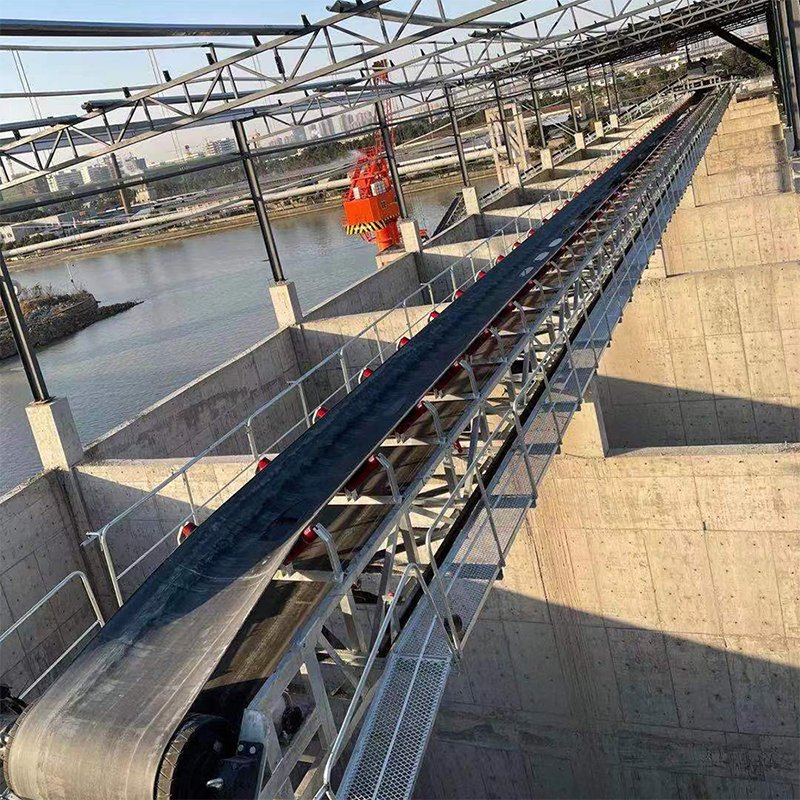

Linear friction belt conveyors are designed for reliable operation and enhanced safety, enabling long-distance conveying and reducing the need for intermediate transfer stations.
The Advantage of SDCAD Belt Conveyor
SDCAD belt conveyor is featured with high conveying capacity, lower operation cost and wide adaptation range. It can consistently convey bulk materials and finished products.
Belt conveyor can be flexibly combined with horizontal and inclined conveying systems which can efficiently solve the problem of different conveying distances and elevations.
The equipment is suitable for ambient temperatures ranging from -10℃ to +40℃. You can choose suitable structural designs and conveyor belt materials to ensure reliable equipment operation.
According to your material type, conveying distance, site environment, and temperature conditions, SDCAD provides customized belt conveying solutions to help you lower operation cost and improve conveying efficiency.
Meet the Requirements of Various Operating Conditions
SDCAD belt conveyor adopts an integrated structural frame design. It enables quick adjustment and installation to meet your requirements of material conveying in various working environments. The length of the conveyor can be tailored by project requirements. The modular structure supports repeated disassembly, transport, assembly, and recycling which can especially suit temporary projects, multi-project construction, and application scenarios requiring flexible relocation. The conveying angle can be designed based on the site topography, spatial layout, and conveying requirements. Even when facing complex terrain, you can achieve reliable and efficient conveying. The equipment is easy to install. No professional installation team is required on-site, your team just after brief guidance can achieve installation, helping you to lower your cost and construction difficulty. SDCAD provides highly adaptable conveying solutions to help reduce operating costs and maximize conveying efficiency.
SDCAD | Your Professional Belt Conveyor Partner
With years of experience in material conveying equipment manufacturing, SDCAD provides complete belt conveyor solutions from project planning to stable operation. Our professional engineering team offers one-stop support, including system design, equipment selection, structural optimization, manufacturing, transportation guidance, installation support, and commissioning. SDCAD also provides comprehensive after-sales service, including spare parts supply, maintenance support, and remote technical guidance. High-quality components and wear-resistant parts help ensure stable operation, reduce downtime, and extend equipment service life. Based on your project requirements, site conditions, material characteristics, and operating environment, SDCAD provides customized belt conveyor solutions to reduce operating costs, improve conveying efficiency, and achieve long-term reliable operation.
Customer Feedback
Installation is convenient; our own team can handle it.
Elliot HristovskiThe customized length design meets our conveying requirements.
Muhammed IbrahimCommunication issues are resolved promptly, and the after-sales service is impeccable.
Madelyn Lanuza
It is primarily used to transport materials such as crushed stone, sand, cement, coal dust, limestone, coking coal fines, petroleum coke, raw coal, and gangue. The products are widely used for bulk material handling in sectors including metallurgy, coal, construction, power generation, port operations, chemicals, light industry, and grain handling.
- Flat belt: Maximum conveying angle of 18°.

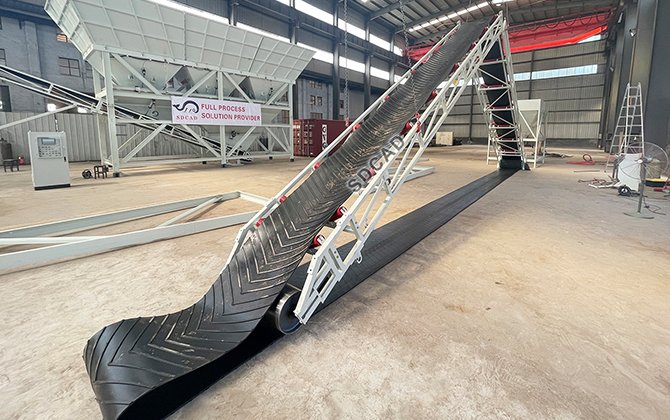

- Chevron-pattern belt: Maximum conveying angle of 27°.
- High-sidewall belt: Maximum conveying angle of 35°.
50–4,500 tons per hour. Depending on operating conditions, it supports long-distance transport, capable of covering distances up to 40,000 meters.
Equipped with external dust covers, it enables zero-emission, pollution-free transport.
For the steel structure, galvanized material can be selected; galvanization provides excellent corrosion resistance.
- Cold-bonded pulley lagging
- Ceramic lagging sheets
- Hot-vulcanized lagging
500 mm, 650 mm, 800 mm, 1000 mm, 1200 mm, 1400 mm.
The belt conveyor is equipped with head and intermediate belt cleaners, effectively cleaning the belt to prevent material carryback.
Primary Belt Cleaner
- The clearing blade is made of special polyurethane, which has features of
flame retardant, anti-static, high wear resistance, high elasticity, low friction - Suitable for conveyor belt with mechanical joint.
- According to the blade wear degree, blade offsets are adjustable.
- For primary belt cleaner, it includes integral type and separate type.
Secondary Belt Cleaner
- The clearing blade is made of high-strength polyurethane, which has features of flame retardant, anti-static, high wear resistance, high elasticity, low friction coefficient, projects the belt and prolongs the service life.
- Suitable for conveyor belt with mechanical joint.
- According to the blade wear degree, the blade offset is adjustable.
- Rubber belt
- PVC belt
- EP belt
- Steel cord belt
Motor:
- Siemens
- ABB
- SEW
Gearbox:
- SEW
Related Products

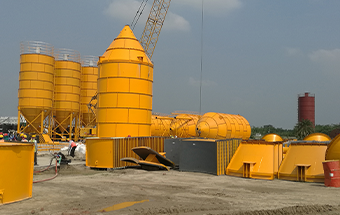

Cement SilosA reliable storage solution for bulk powders, featuring stable discharge performance and efficient material management capabilities. It can connect seamlessly with Belt conveyors to enable continuous storage, conveyance, and feeding of powdered materials such as cement and fly ash, thereby enhancing the operational efficiency of the entire production system.

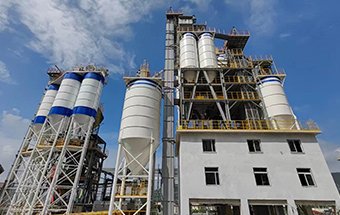

Dry-Mix Mortar Production LineAn automated production solution that integrates batching, mixing, conveying, and packaging. When paired with Belt conveyors, it enables precise conveying and continuous feeding of various powdered materials, allowing stable operation of the entire production line while improving product quality and production consistency.

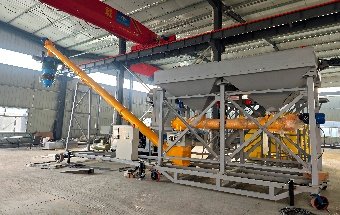

Bulk Loading SystemA high-efficiency bulk loading solution for the cement and powder industries. When combined with Belt conveyors, it offers a complete material handling chain. This system enables continuous automated operations from storage and conveys to tanker truck loading and reducing material loss and improving loading efficiency.

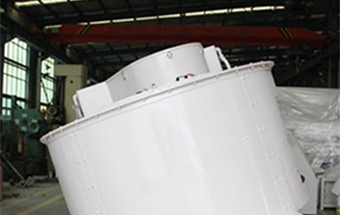

Powder MixersSpecifically designed for dry-mixed mortar, putty powder, and various industrial powders to achieve uniform and efficient mixing. When used in conjunction with Belt conveyors, they deliver a continuous and stable feed to the mixer, improving batching accuracy and ensuring the final product consistency and stability.
